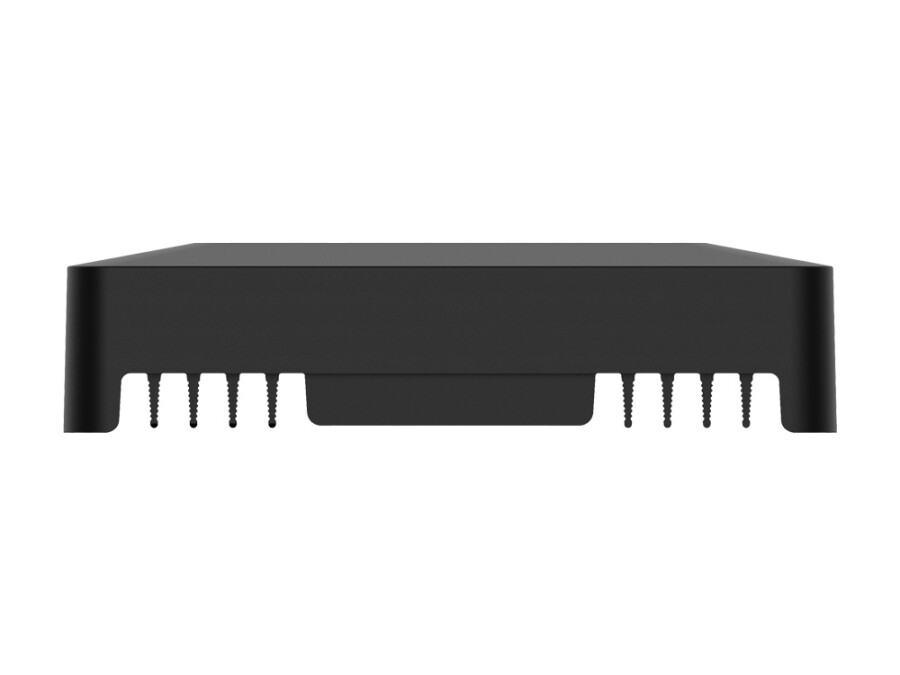

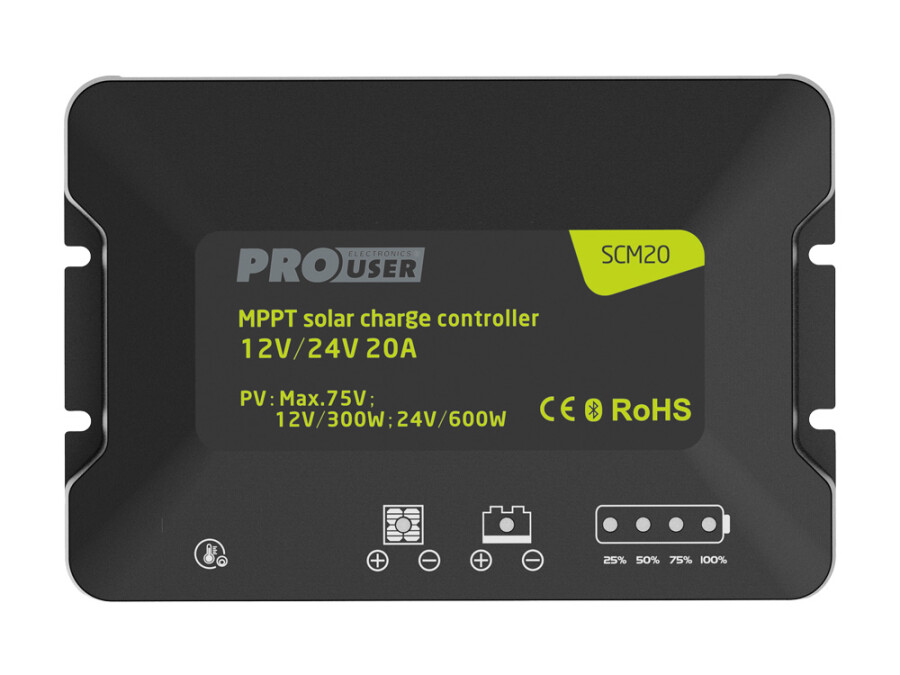

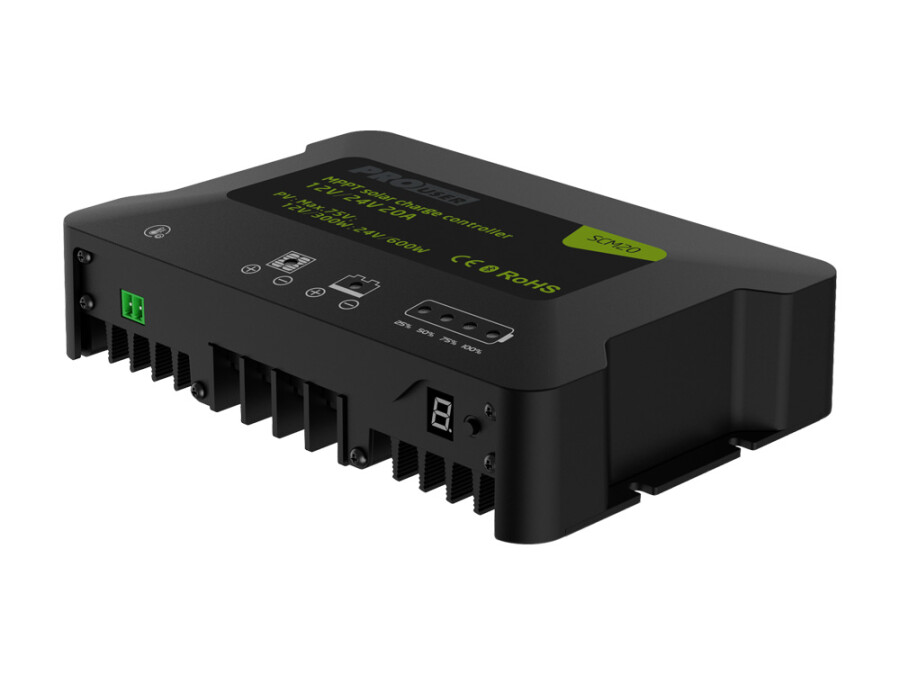

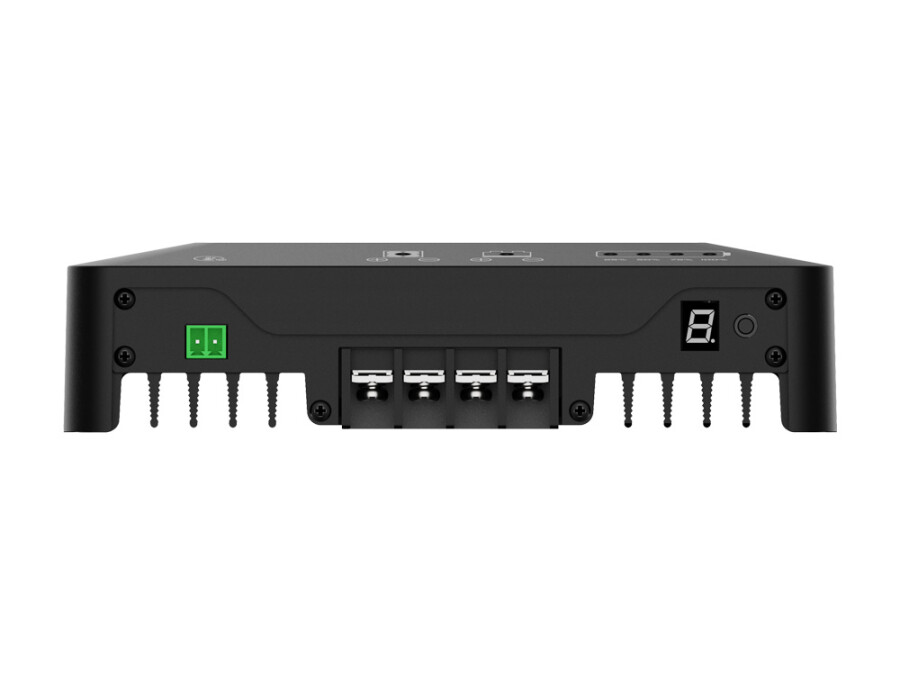

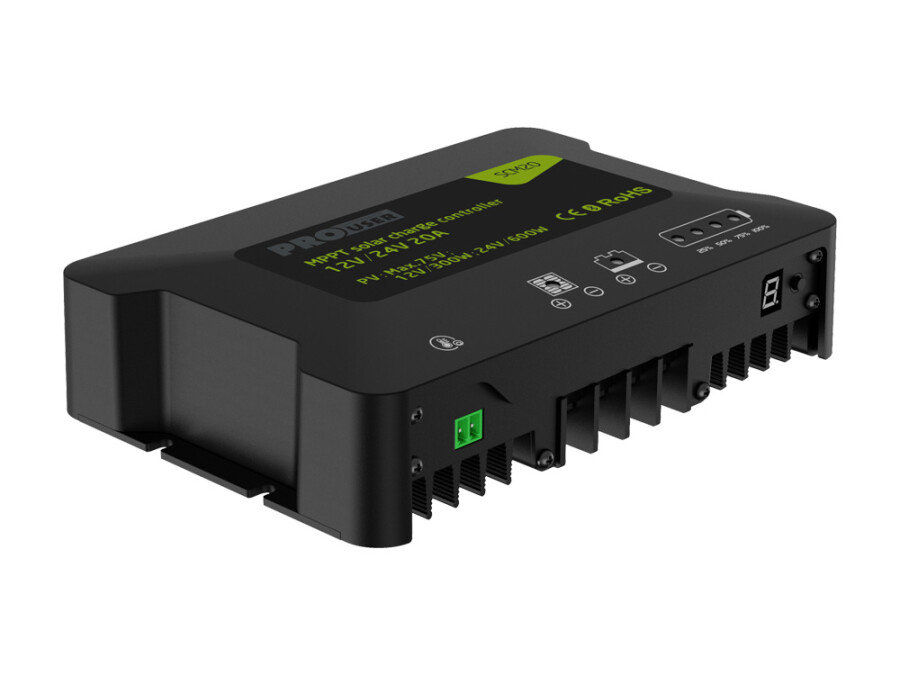

SCM20 MPPT charger
The 20 amp charge current regulator from Pro-User Electronics features an MPPT function. With an optimised Maximum Power Point Tracking (MPPT) system, this regulator extracts up to 30% more energy from the solar panel, making it more efficient and cost-saving.
The SCM20 is also equipped with Bluetooth. With the handy accompanying app, you can easily monitor the performance of the solar panel. Monitor the energy yield, optimise the system performance and always stay informed about the energy consumption.
Specifications for the
SCM20 MPPT charger
| Weight | 700 gram |
| Guarantee | 2 jaar |
| Battery Type | STD/AGM/LiFePO4 (12V) |
| Battery capacity | 12V / 24V |
| Amperage | 20A |
| Dimensions | 164 x 107 x 32 mm |
| Max. PV vermogen 12 V | 260 Watt |
| Max. PV vermogen 24 V | 520 Watt |
| Max. PV vermogen 36 V | ✗ |
| Max PV vermogen 48 V | ✗ |
| Wifi function (app) | ✓ |
| Temperature sensor | ✓ |
